VS-W Miniature Basic Switches

Features: *Industry standard design with 16A ratings *Choose from a variety of levers, terminals *Epoxy resin assuring stable sealing *Available in molded lead wire terminals *Riveted joint for lever arms *RoHS Compliant *IP67 rated

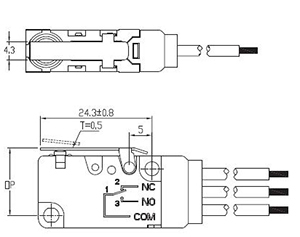

Installation dimensions:

Specifications: Operating Speed: 0.1mm to 1m/s Operating Frequency: Mechanical: 600ops/min Electrical: 60ops/min Insulation Resistance: 100MΩ min.(at 500VDC) Contact Resistance: 30mΩ max(initial values) Rated Voltage/Current 0.1A, 3A, 5A, 11A, 16A 1/2HP 125/250VAC Dielectric Strength: 1000VAC,50/60Hz for 1 min between terminals of the same polarity 2500VAC,50/60Hz for 1 min between current-carrying metal parts and ground,and between each teminal and non-current-carrying metal parts Service Life: Mechanically 1×107 (operations) Electrically  1×105 (operations) Operating Temperature: standard -40~85℃ high temperature -40~150℃ Degree of Protection: IP67

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

TRADEMARK INFORMATION:
All trademarks, trade names, or logos mentioned or used are the property of their respective owners.

TYPE:VS5W1G-U View Details	TYPE:VS5W2G-U View Details	TYPE:VS5W3G-U View Details
TYPE:VS5W4G-U View Details	TYPE:VS5W5G-U View Details	TYPE:VS5W6G-U View Details
TYPE:VS5WG-A View Details	TYPE:VS5WG-U View Details
